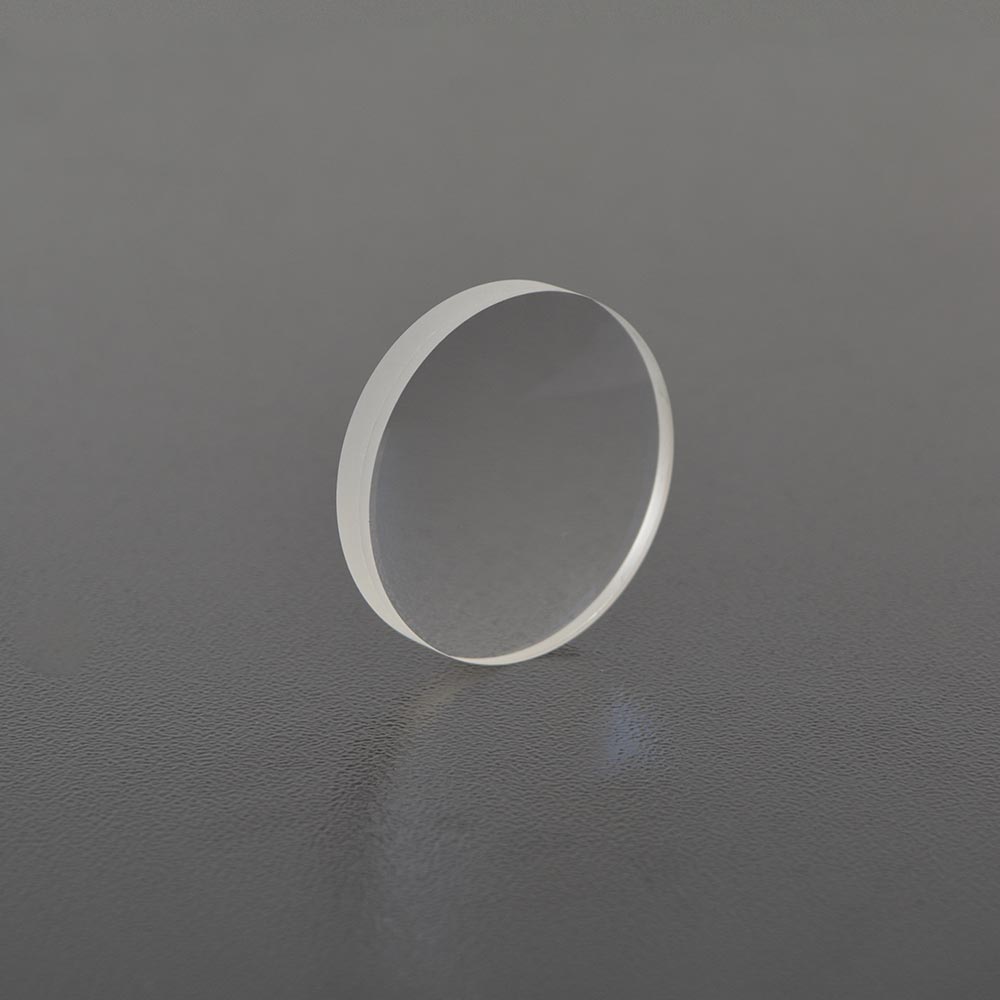

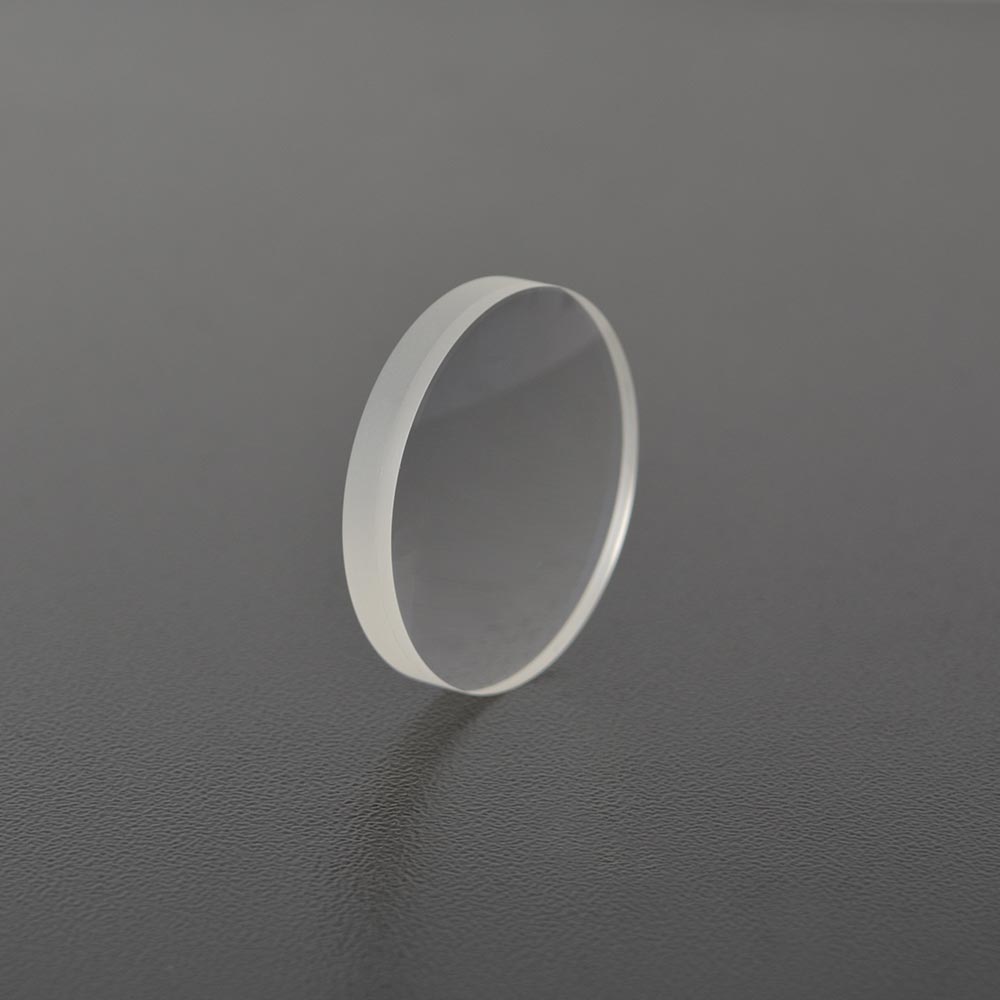

Windows are designed to be used in optical systems to separate two environments while passing a particular spectral range between them. Applications include laser set-ups, emitter/detector protection devices, and imaging systems involving ultraviolet wavelengths.
► Material : Fused Silica
► Surface quality : 40 – 20 ( scratch-dig )
► Dimensional Tolerance : +0.0, -0.2mm
► Thickness tolerance : +0.0, -0.2mm
► Surface flatness : λ / 4 @ 632.8 nm
► Surface Quality : 40 – 20 (scratch-dig)
► Bevel : 0.2mm x 45°
► Parallelism : ≤ 1 arc min or 3 arc min
► Coating : Broadband AR
# Dispatch within 3 days
Model No. HO-WCSB-50-3
Exworks-Kochi : Apply coupon ‘Exworks-Kochi’ in the ‘Checkout page’ or in the ‘Cart page’ in case you want to use your carrier for shipping and delivery.
