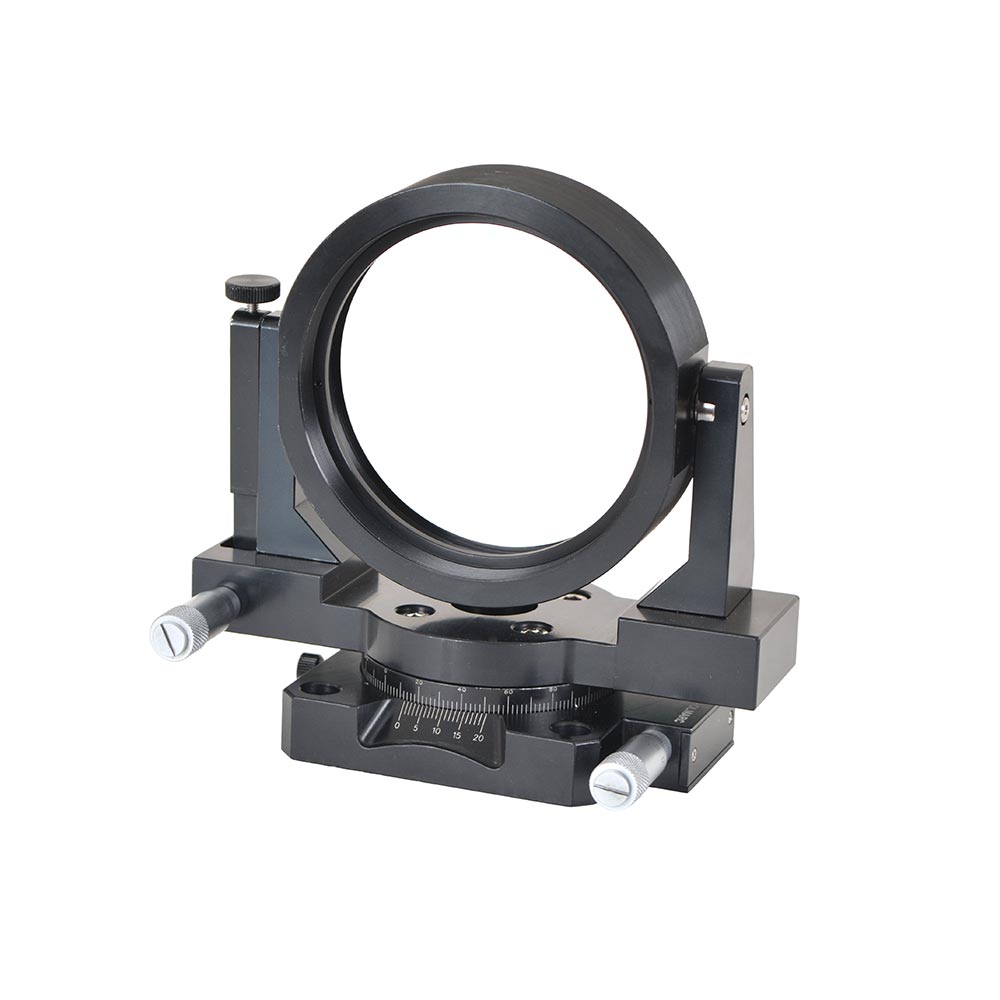

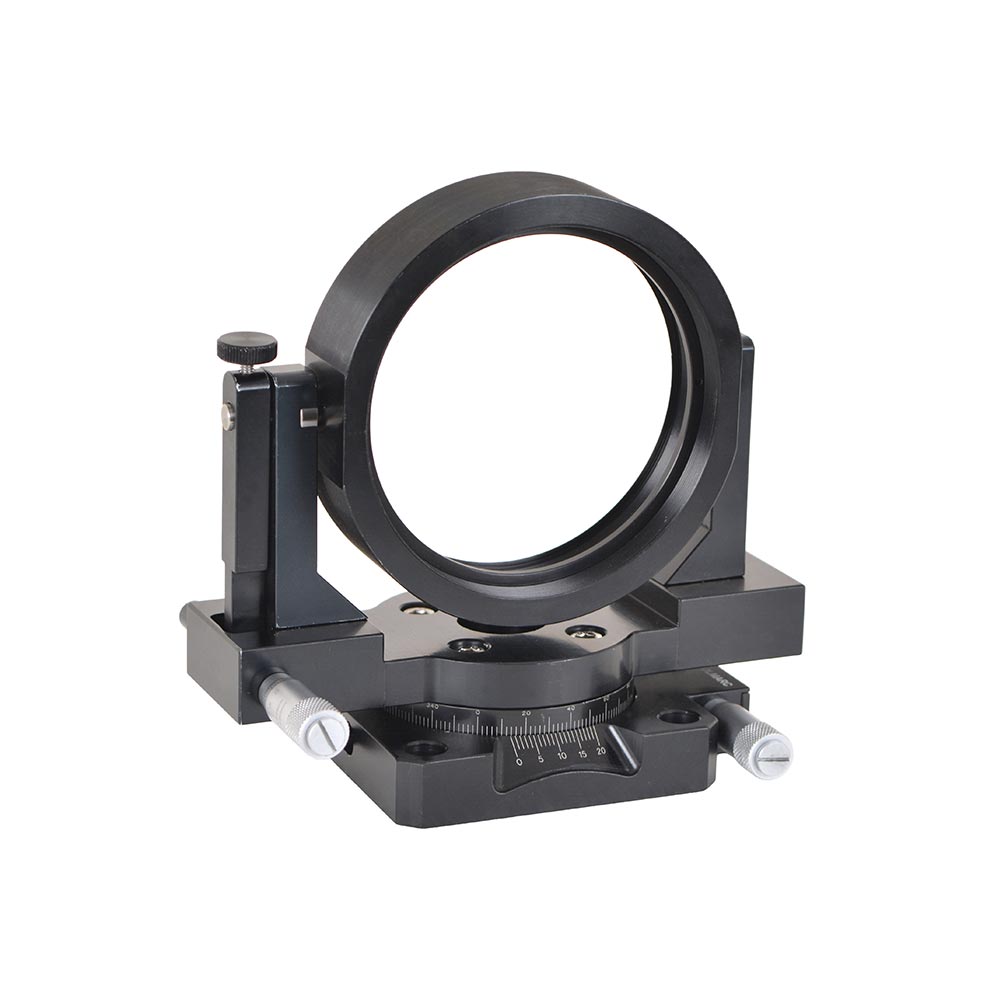

Gimbal mirror mounts provide 360°coarse positioning in two axes about the mirror surface in addition to fine adjustment of 6°. Fine adjustments is with lead screw of 0.25mm linear resolutions per rotation. Switching between coarse and fine movement is by using a knob or a setscrew provided in the gimbal mount.
Optics upto 12.5 mm thickness can be held in 50 mm gimbal mirror mount and up to 10 mm can be held in 25 mm gimbal mount. Optics are fixed with the help of threaded ring.
► Coarse Travel θx / θy : 360°
► Fine Travel θx / θy : +/- 6°
► Linear Resolution : 0.25mm / Rotation
► Sensitivity : 4 arc sec.
► Mounting Hole : M6 Slots
► Rotation Axis Laid ON : Mirror plane
► Material Construction : Aluminium alloy
► Finish : Black Anodized
► Optics Size : 100 / 4″
► Drive : Micrometer
Model : GMM-Mu-100
