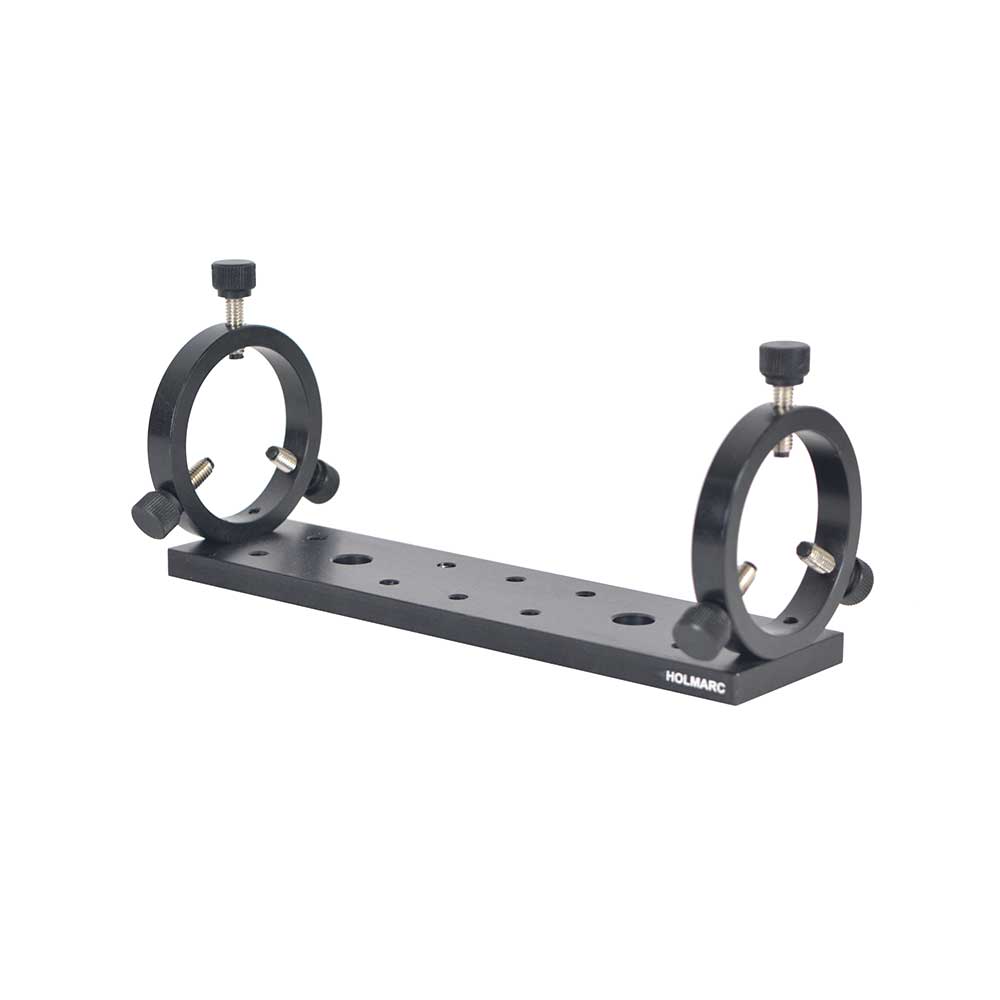

This laser holder can be mounted using standard posts having M6 tapped holes. Two posts and post holders have to be used for stability. The device can be directly mounted to breadboards and stages by making use of two M-6 C’bored holes provided at the base.

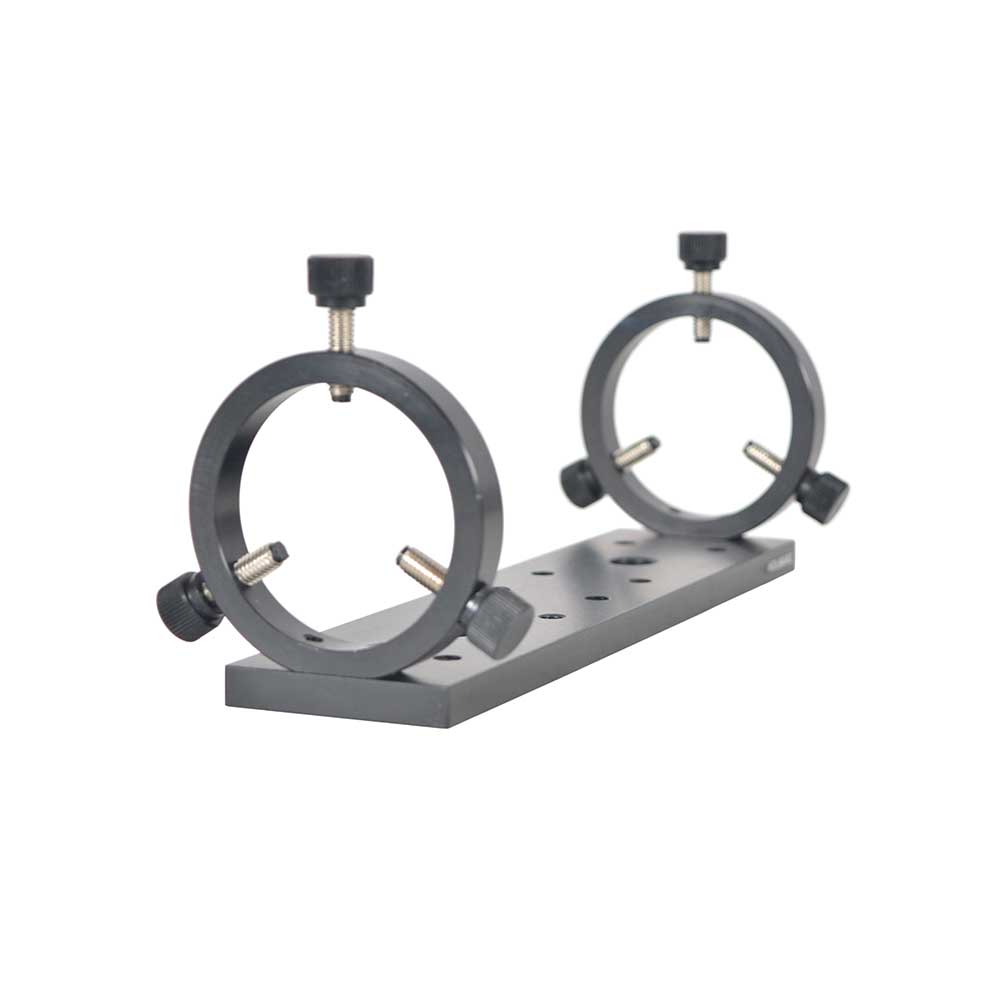

Laser is held inside two rings, each having three adjustment thumb screws. Tilt and position can be adjusted by the use of thumb screws.
► Aluminium alloy construction
► Black anodized finish
► Min Dia Laser (mm) : 50 mm
Model : HeLM-50
