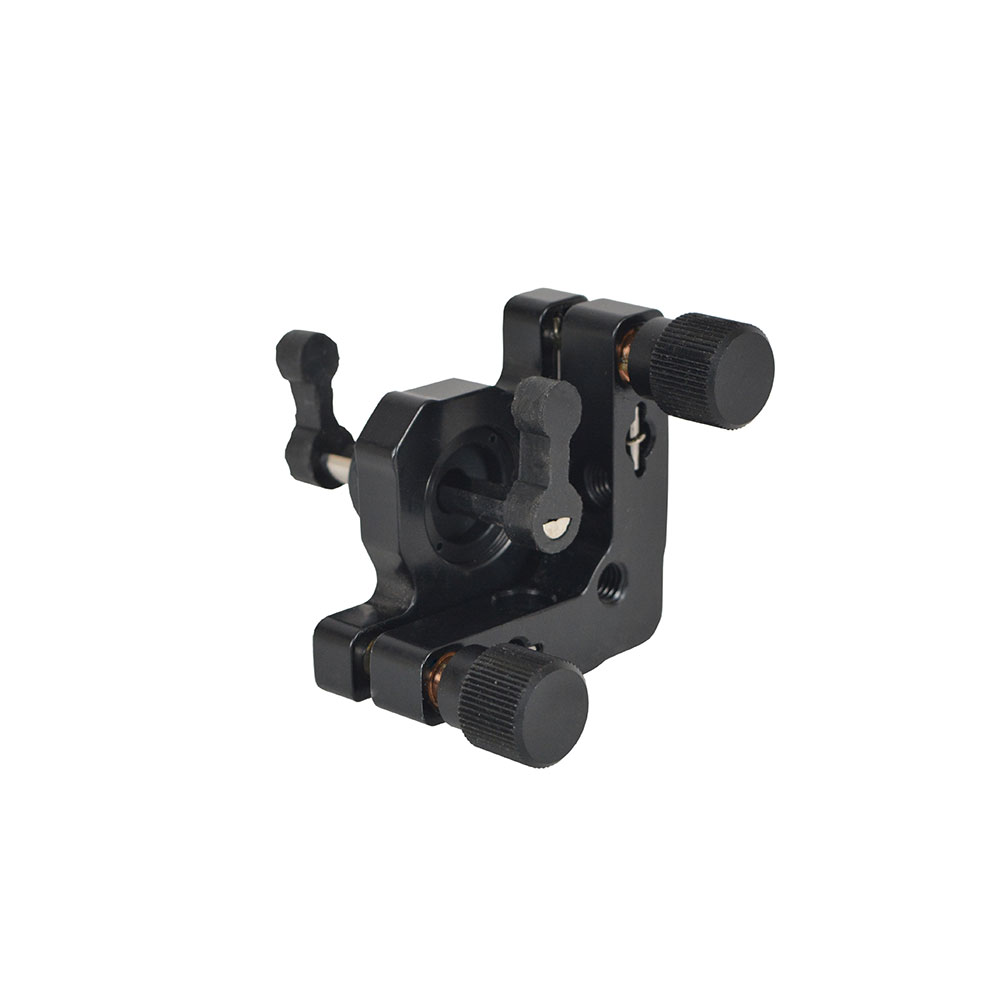

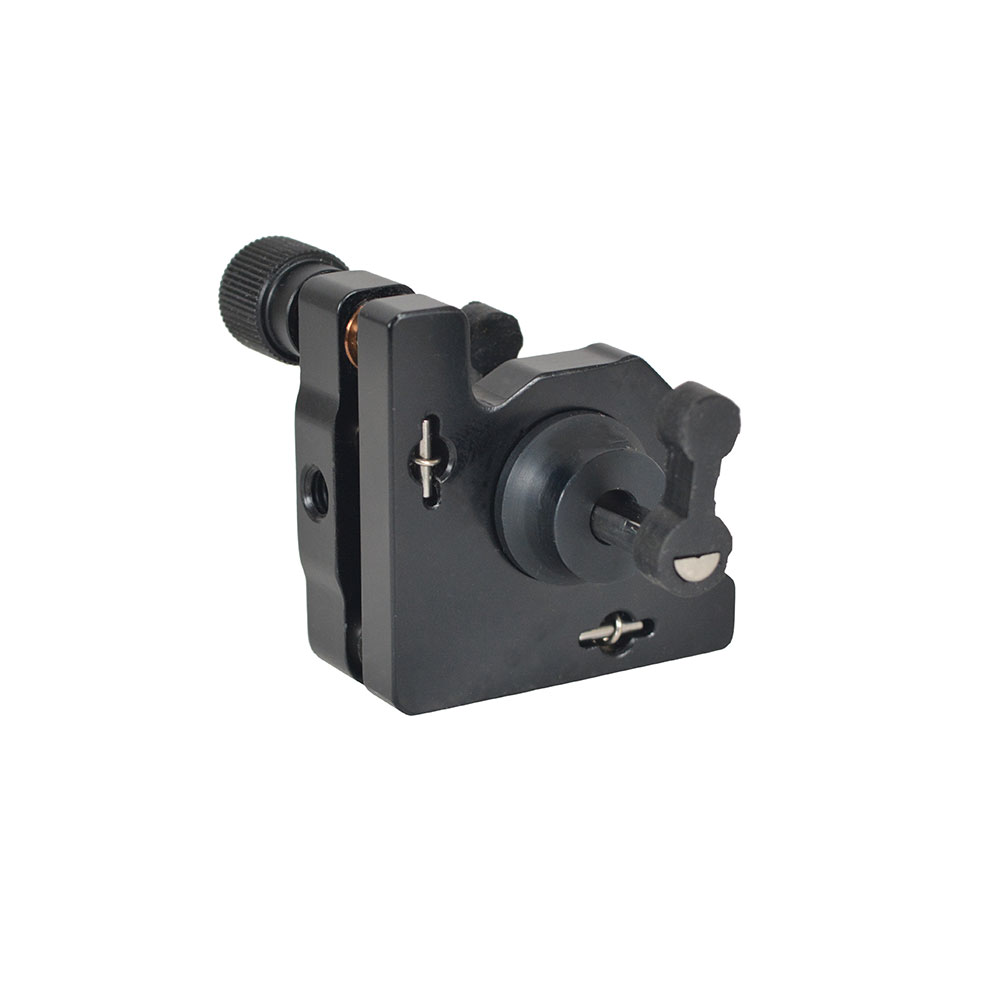

Kinematic mounts are used for precise tilt adjustment in two different planes. Fiber clamping provision is done through center tilting unit. This positioner is equipped with a fiber chuck and chuck holder to clamp fibers up to 1 mm diameter.
► Tilting range: +/- 3 degrees
► Driven by 80 tpi lead screws or micrometer
► 20 arc sec. sensitivity
► Aluminium alloy
► Black anodized finish
► Post mountable
► Drive : Micrometer 0.01 mm LC
Model : KFP-M
