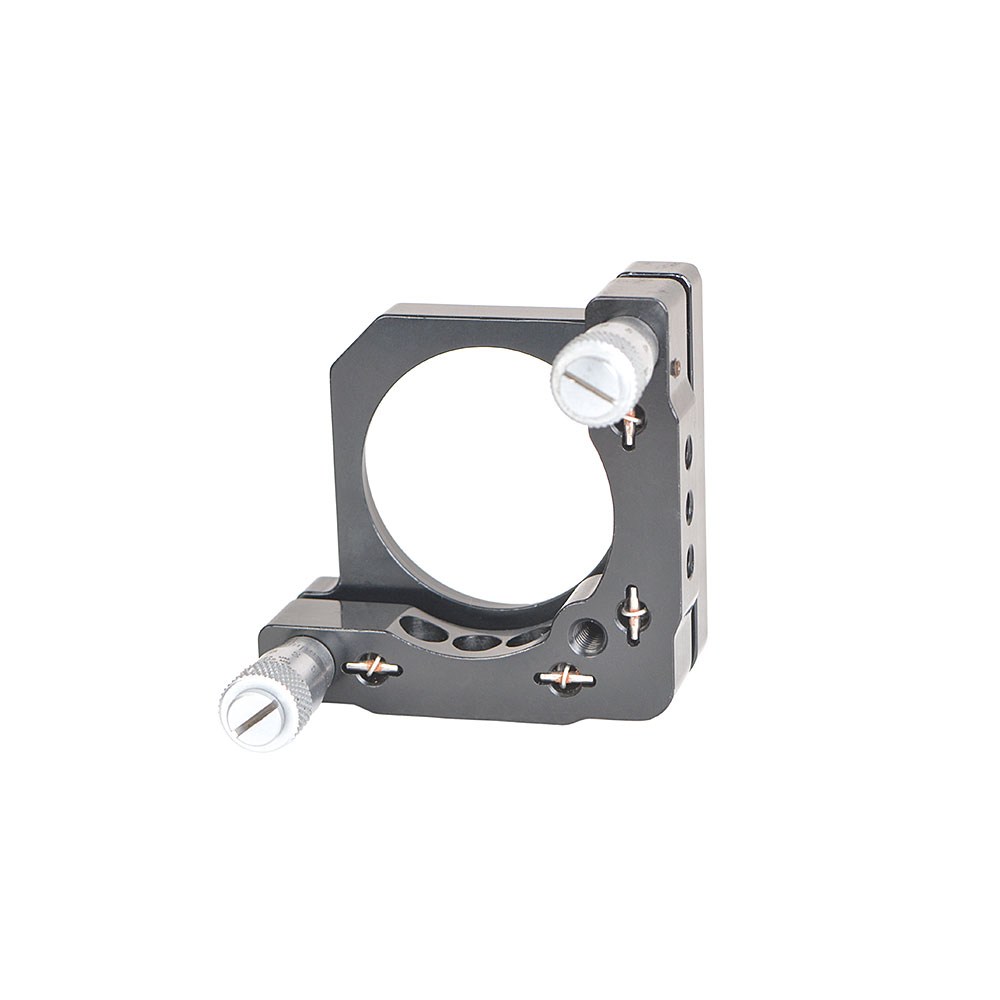

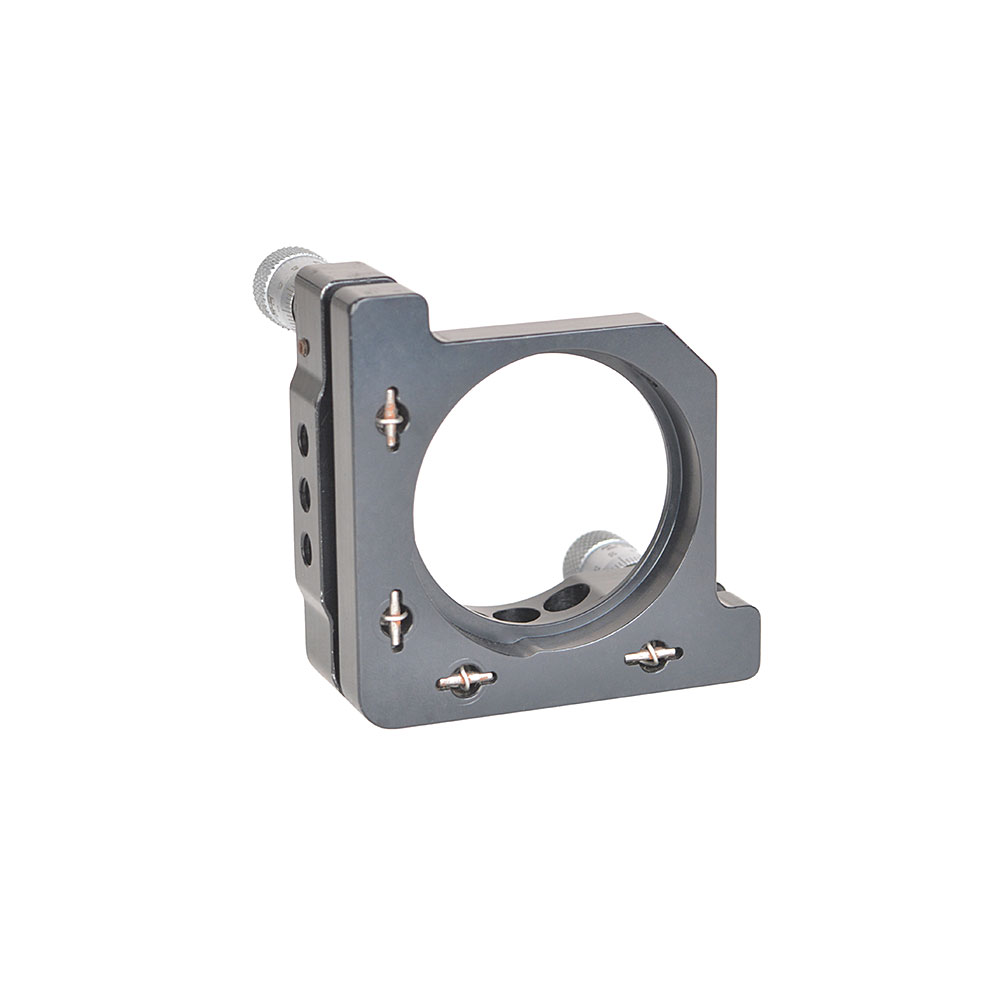

Optics can be held in front surface of the mount in a stepped bore by nylon tipped grub screw. This mirror mount is suitable for circular mirrors, beamsplitters, lenses etc.
► Tilting range +/- 3 degrees
► M6 Mounting Hole
► Optics Size : 50 mm or 2.0″
► Linear Resolution : 0.25 mm ( 100 Tpi )
► Sensitivity : 4 arc sec.
► Mounting Hole : M6 Tapped / M4 CBR
► Mounting Orientation : Vertical & Horizontal
► Material : Aluminium
► Micrometer Drive
► Post mountable
Model : KMC-Mµ-50
