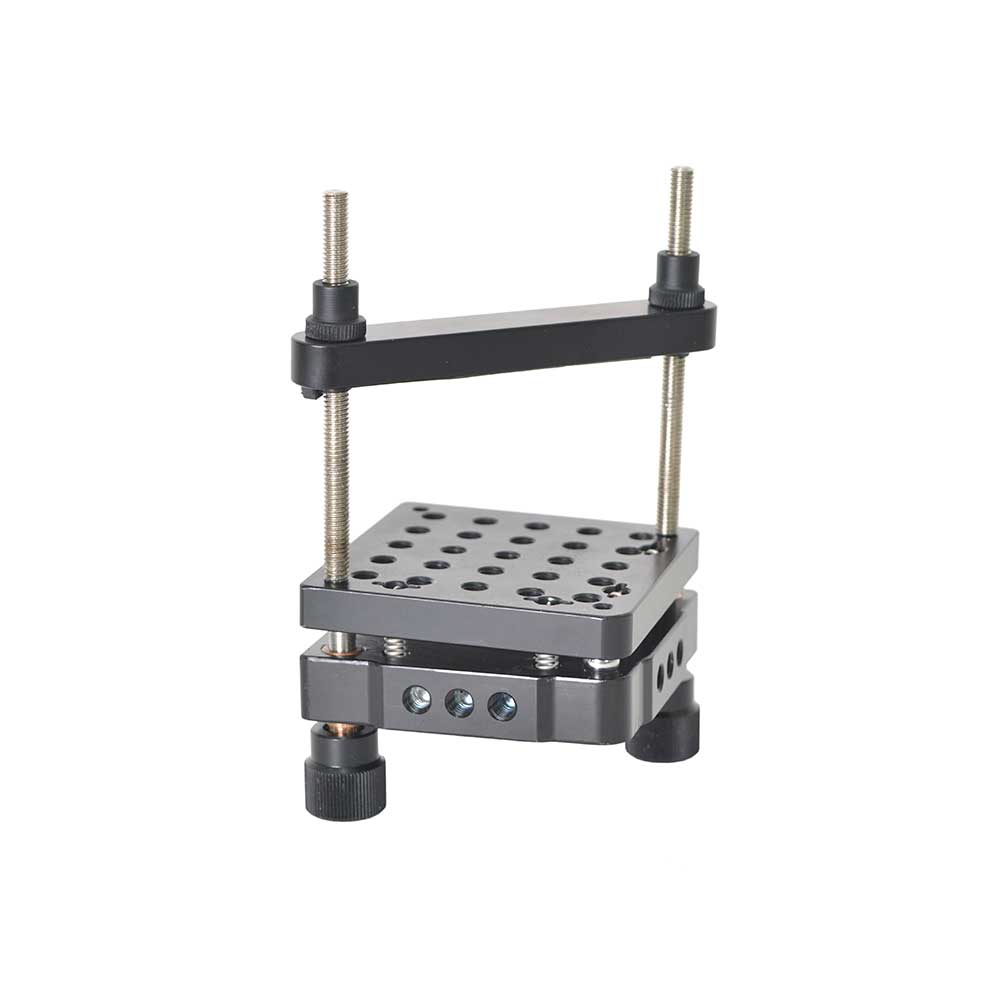

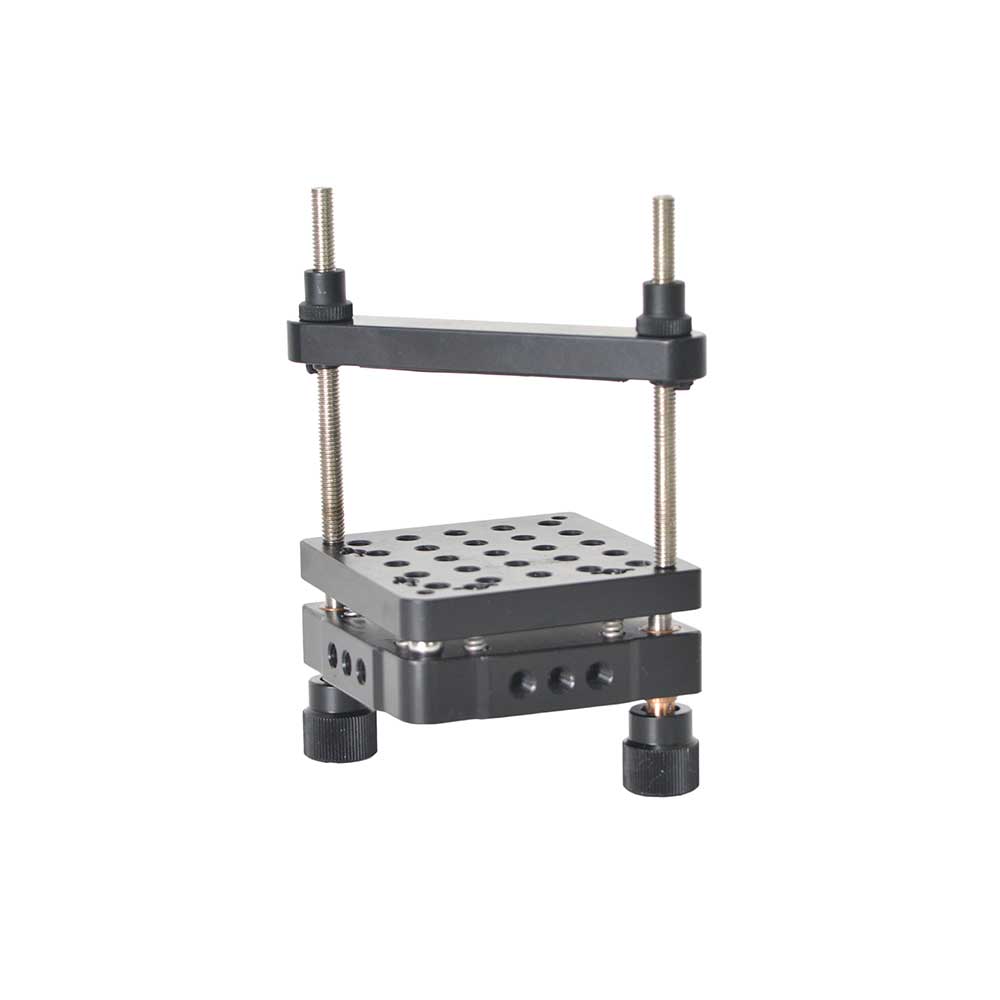

M6 and M4 tapped holes are provided on a 12.5 mm grid for mounting various optical or opto-mechanical components over the platform. M6 tapped holes are provided at the back plate of kinematic platform for post mounting applications.
► Angular tip / tilt : +/- 3°
► Linear resolution : 0.25 mm
► Sensitivity : 4 arc sec.
► Mounting hole : M6 / M4
► Mounting orientation : Vertical & horizontal
► Material : Aluminium
► Finish : Black anodized
Model : KPMD-75
