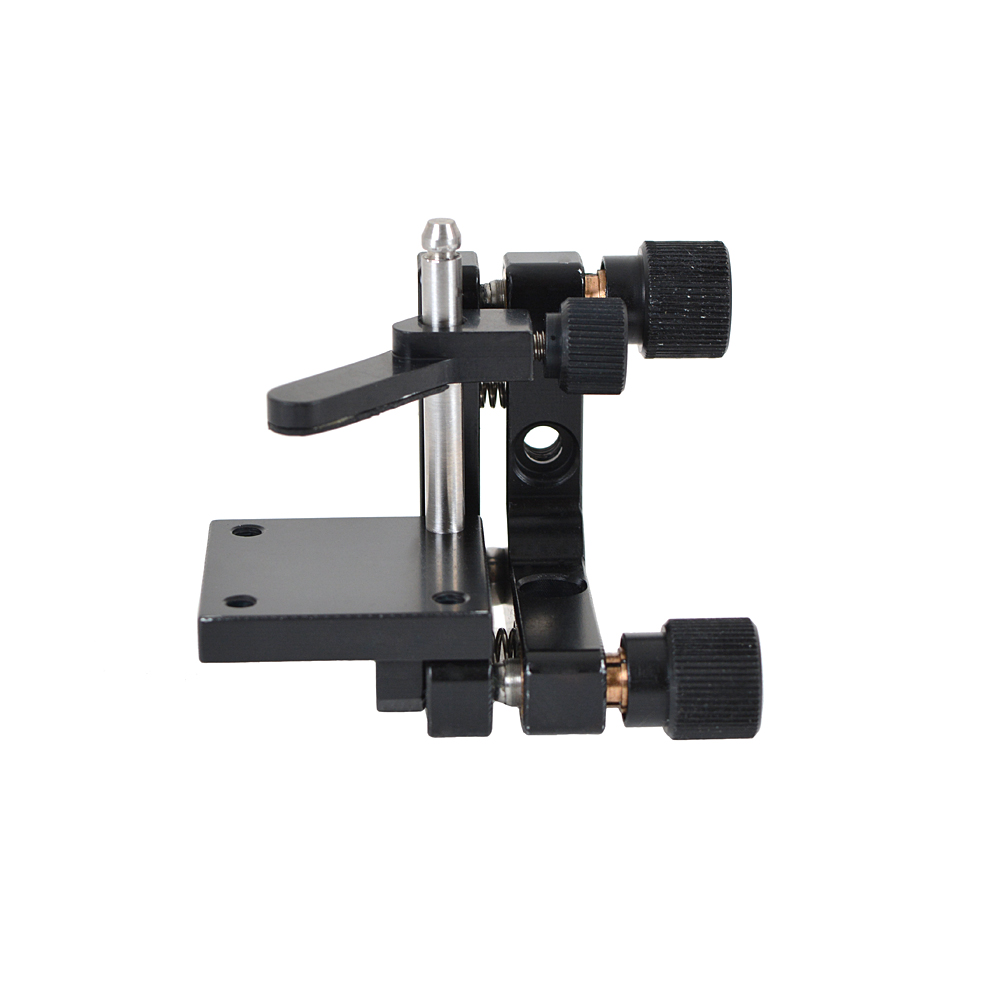

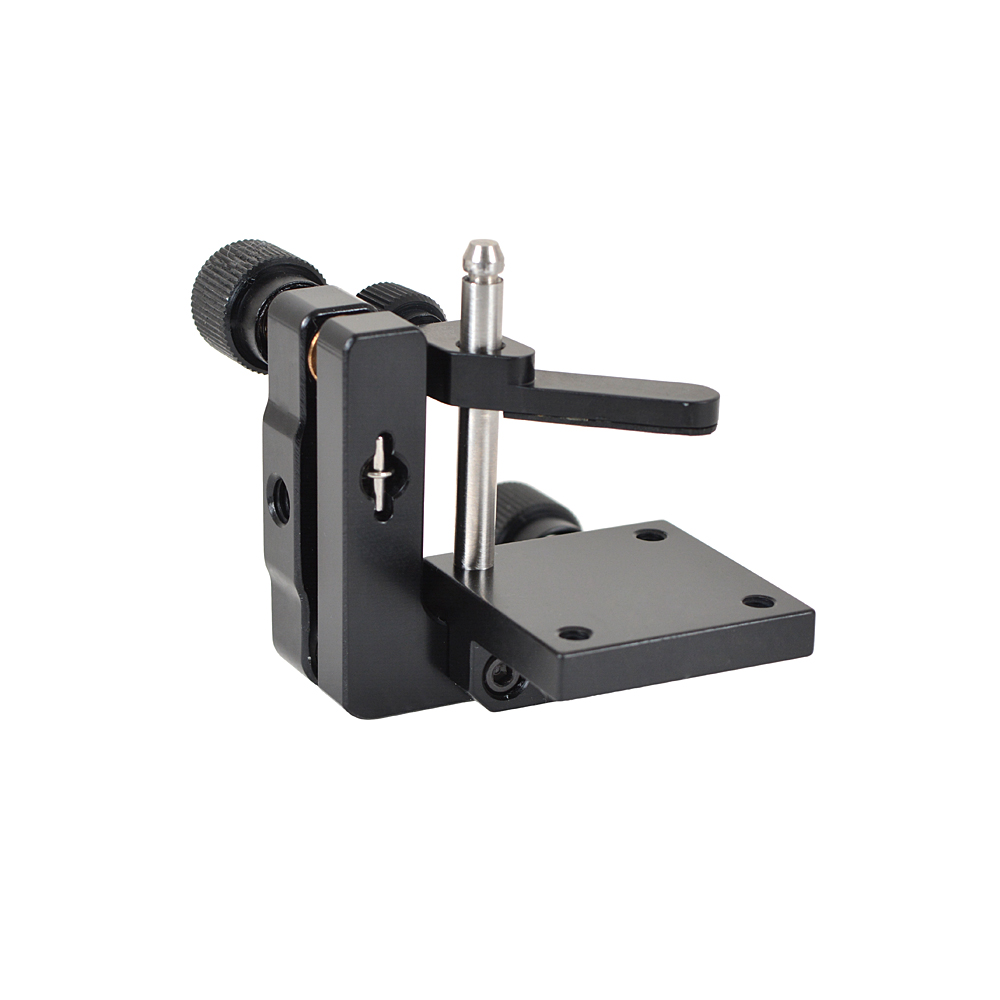

KTM series kinematic prism mounts enable horizontal & vertical mounting. Left / Right orientations can be easily arranged using detachable platform. Suitable prism clamps are provided along with each kinematic prism mounts. Tilt adjustment screws have 0.25mm / rev. pitch threads. Construction material is aluminium with black anodized finish. M6 / M4 mounting options are provided for fixing with standard 12mm or 16mm posts.
► Angular Tip / Tilt : +/- 3°
► Linear Resolution : 0.25 mm
► Sensitivity : 4 arc sec.
► Mounting Hole : M6 Tapped / M4 CBR
► Mounting Orientation : Vertical & Horizontal
Model : KTM-25
