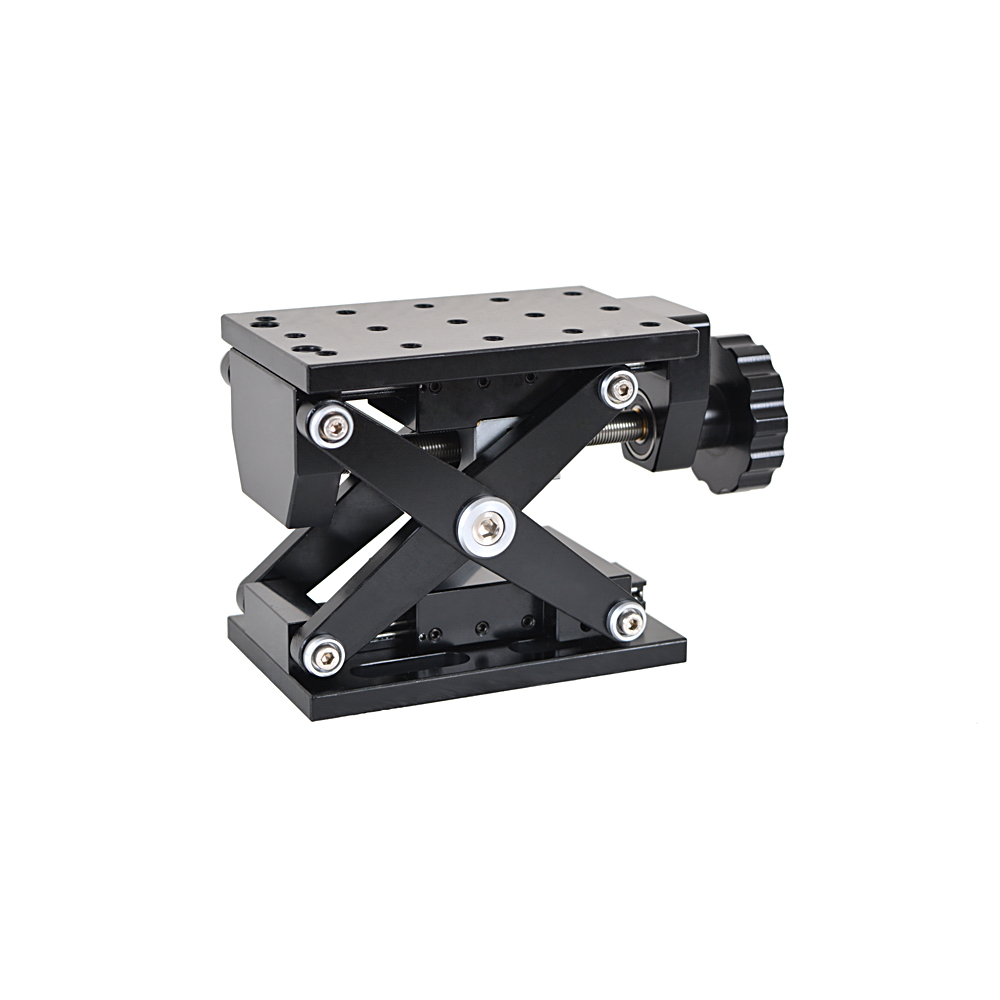

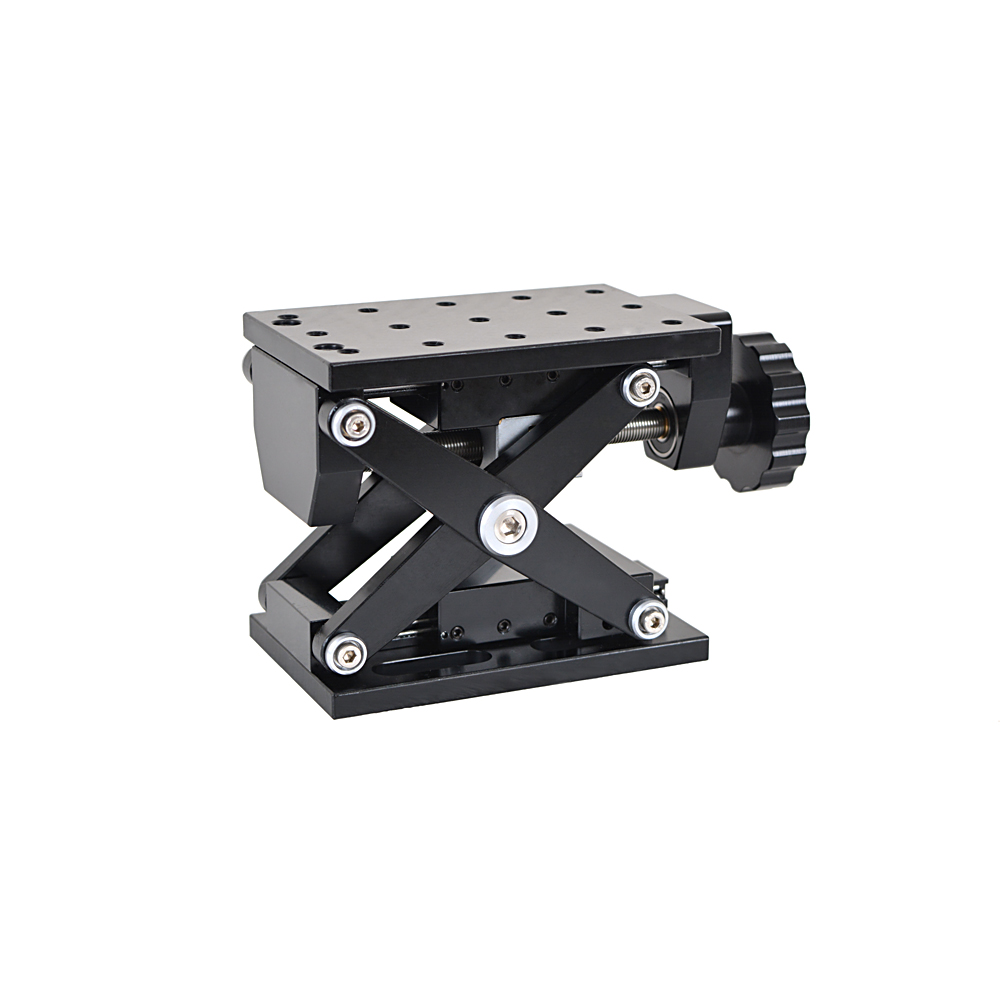

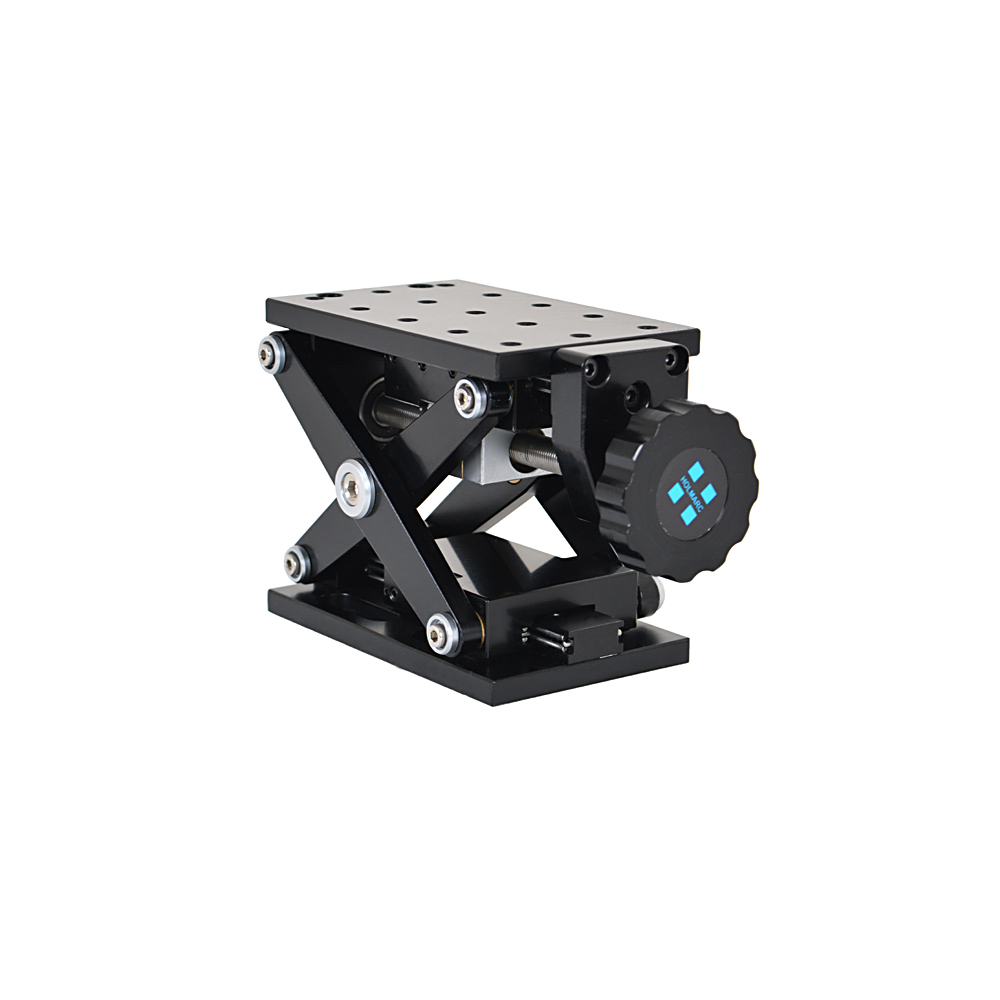

his is a labjack that offers excellent rigidity and positioning accuracy. These labjacks can be used to lift assemblies like Lasers, Stages etc. This model uses scissors type design.
► Vertical height adjustment by 1 mm pitch lead screw.
► Load capacity (Kg) : 5
► Parallelism : 0.1mm for the entire travel
► M6 tapped holes on the top at 25 mm grid.
► M6 clearance slots at bottom
► Aluminium alloy & stainless steel construction
► Black anodized
Model : LJ120-75
