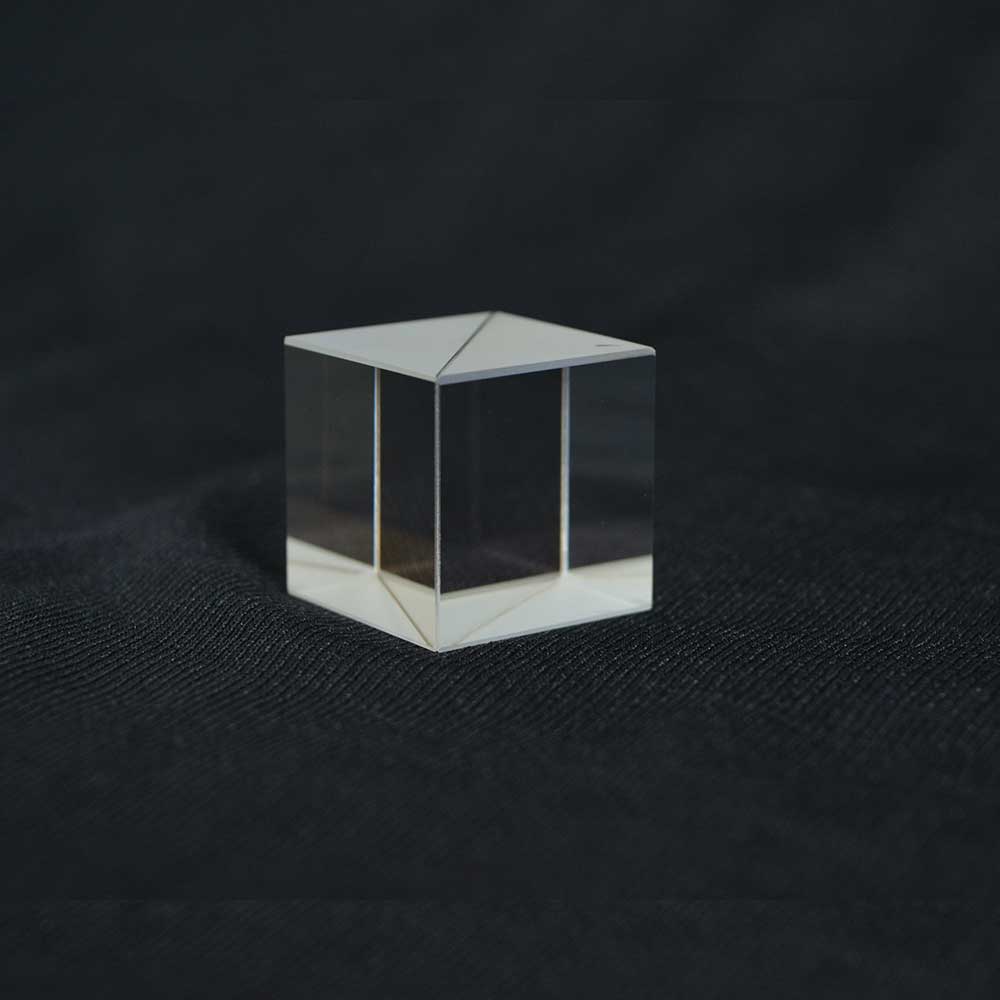

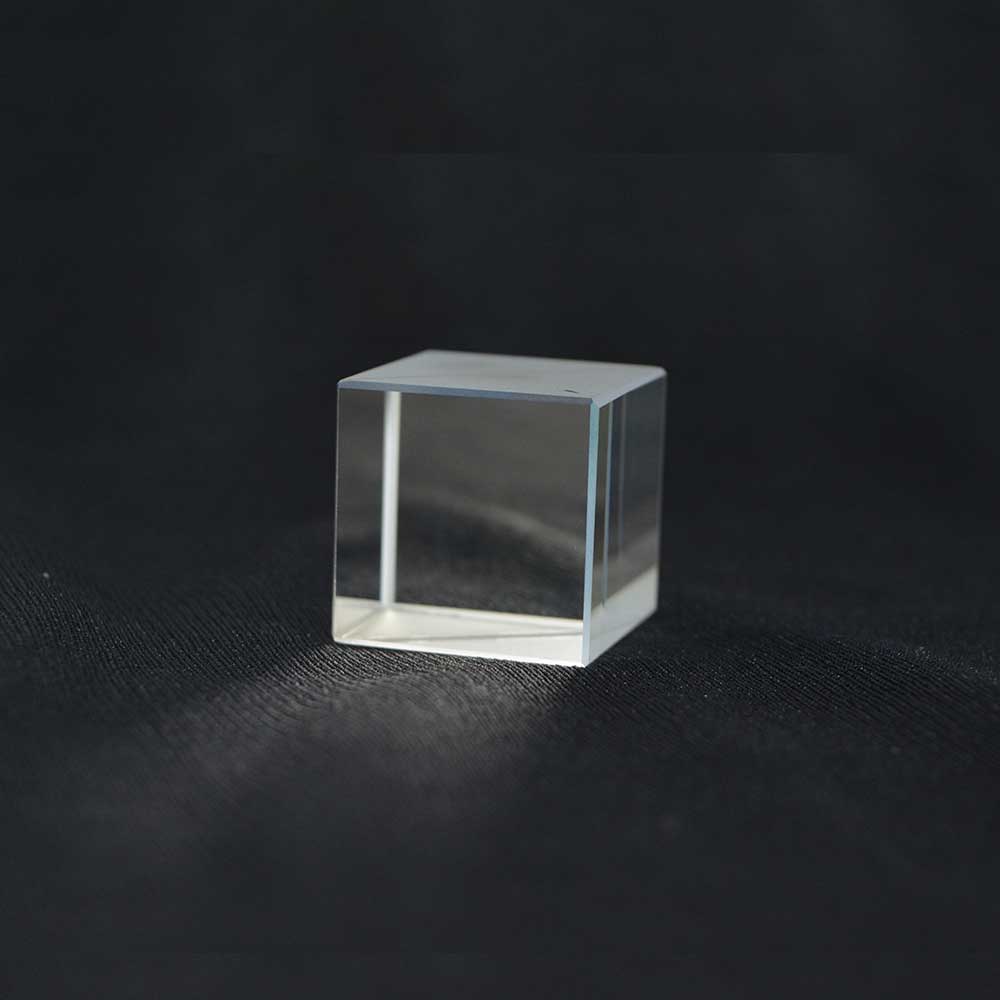

Holmarc’s Metallic cube beamsplitters consists of two right angle prisms cemented together. The hypotenuse of the one prism has a combination of metallic-dielectric thin film coating. These are Lowpolarizing beamsplitters; the transmission and reflection for S – and P – polarization components are within ±10%. The cube faces of our beamsplitters have anti-reflection coatings for getting maximum transmittance.
► Material : BK7 or equivalent
► Cube Size : 20 mm
► Wavelength : 400 – 700 mm
► Clear aperture : 90%
► Surface quality : 40 – 20 ( scratch-dig )
► Dimensional Tolerance : +0.0, -0.2 nm
► Surface flatness : λ / 4 @ 632.8 nm
► Angle folerance : ± 5 arc min
► Coating : Broadband AR
► Split ratio ( R% / T% ) : 50 / 50 ± 10%
► Absorption : < 10%
► Polarization : < 10%
# Dispatch within 3 days
Model No. HO-MCBS-B-20
