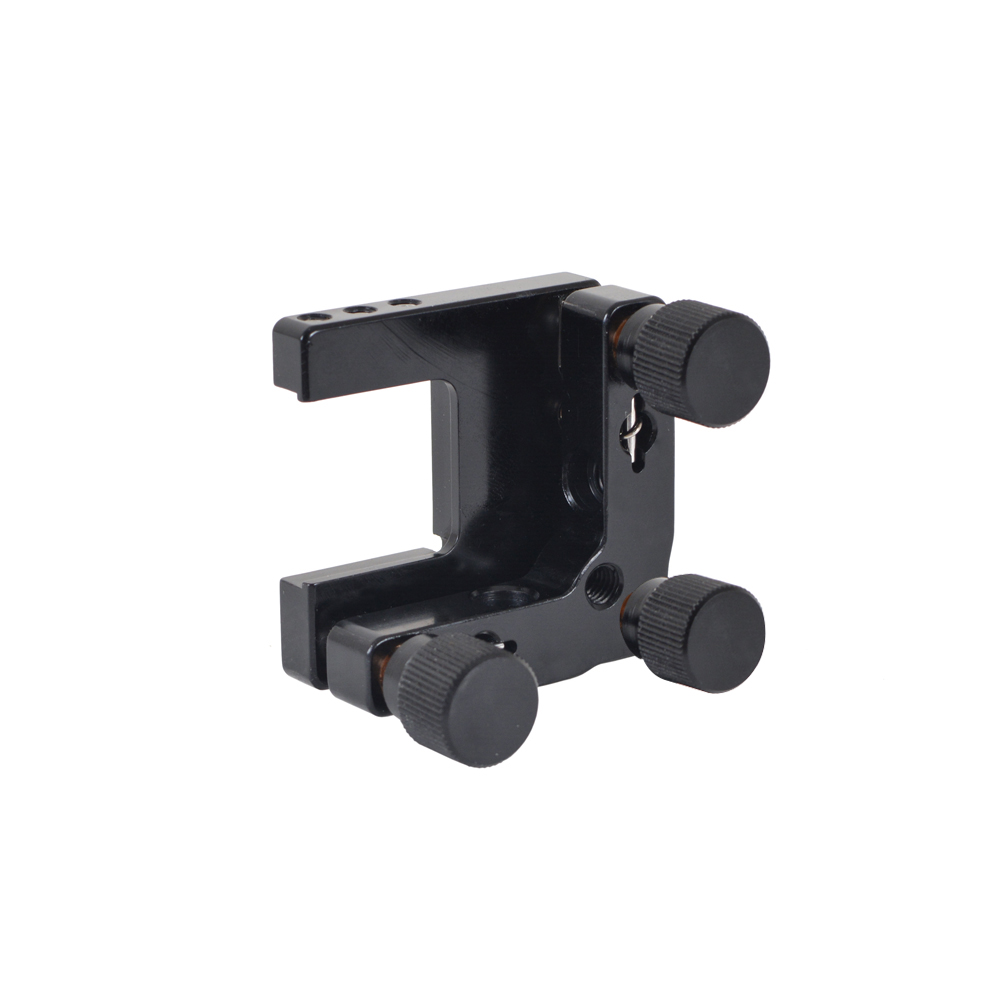

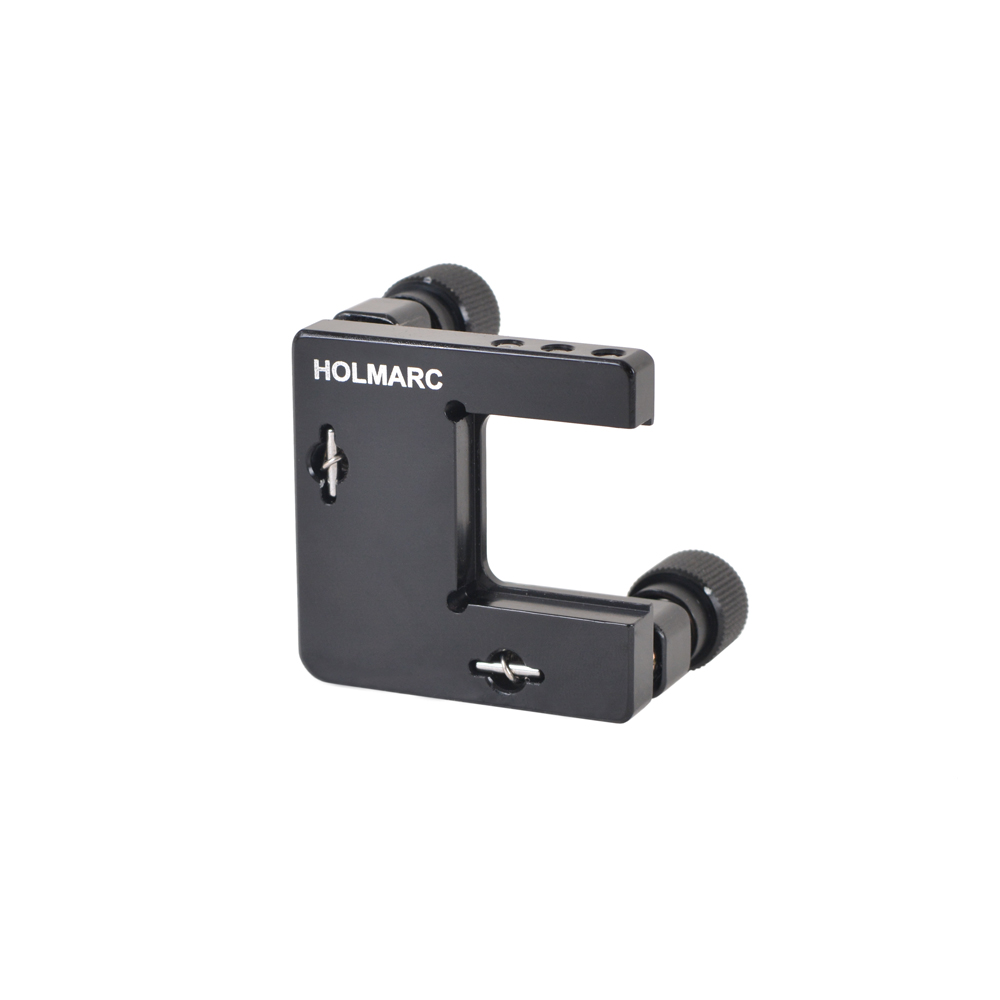

This mount can be used to position square and rectangular optics. Mirror / Beamsplitter is held in front surface of the mount in a stepped bore by nylon tipped grub screw.
► Angular tip / tilt : +/- 3°
► Linear resolution : 0.25 mm
► Sensitivity : 4 arc sec.
► Mounting hole : M6 tapped / M4 CBR
► Mounting orientation : Vertical & horizontal
Model : KMR-CS-T-25
