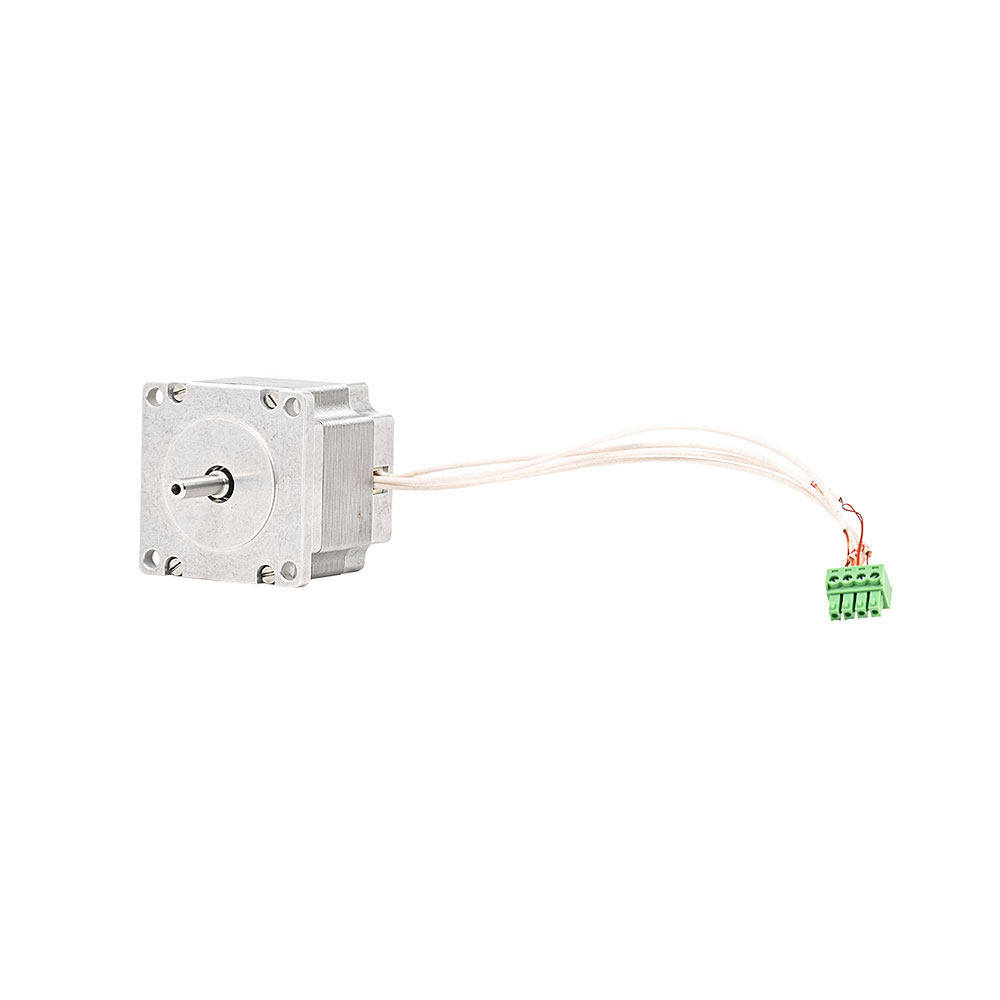

1. Rotor, stator, bearings and shaft are made in Stainless steel
2. Windings and insulations can support a maximum temperature of 150°C
3. Winding coil extended outside without soldering for external connections.
Specifications
► Vacuum compatibility : Ultra high vacuum compatible Stepper Motor
► Vacuum range : ≤ 1 x 10-7mbar
► Bake able temperature : 150°C
► Core material : Stainless steel , Grade – SS430
► Shaft material : Stainless steel – 304
► Bearings : Stainless steel – 304
► Side plates : Aluminium – 6061
► Winding : Class heavy film Polyester over coated with polyamide-imide enameled copper wire, 150°C thermal class
► Plastic parts : Teflon
► Size of motor : 56 x 56 x 64 mm
Model : 57ST51-4A-V
| Model | 57ST51-4A-V |
| 1 Rated VoltageV | 2.3 |
| 2 Current / PhaseA | 2.8 |
| 3 Resistance / PhaseΩ | 0.83 |
| 4 Inductance / PhaseMH | 2.2 |
| 5 Holding TorqueNM | 0.45 |
| 6 Rotor InertiaG-CM2 | 275 |
| 7 WeightKG | 0.65 |
| 8 Number of LeadsNº | 4 |
Speed vs. Torque Characteristic
