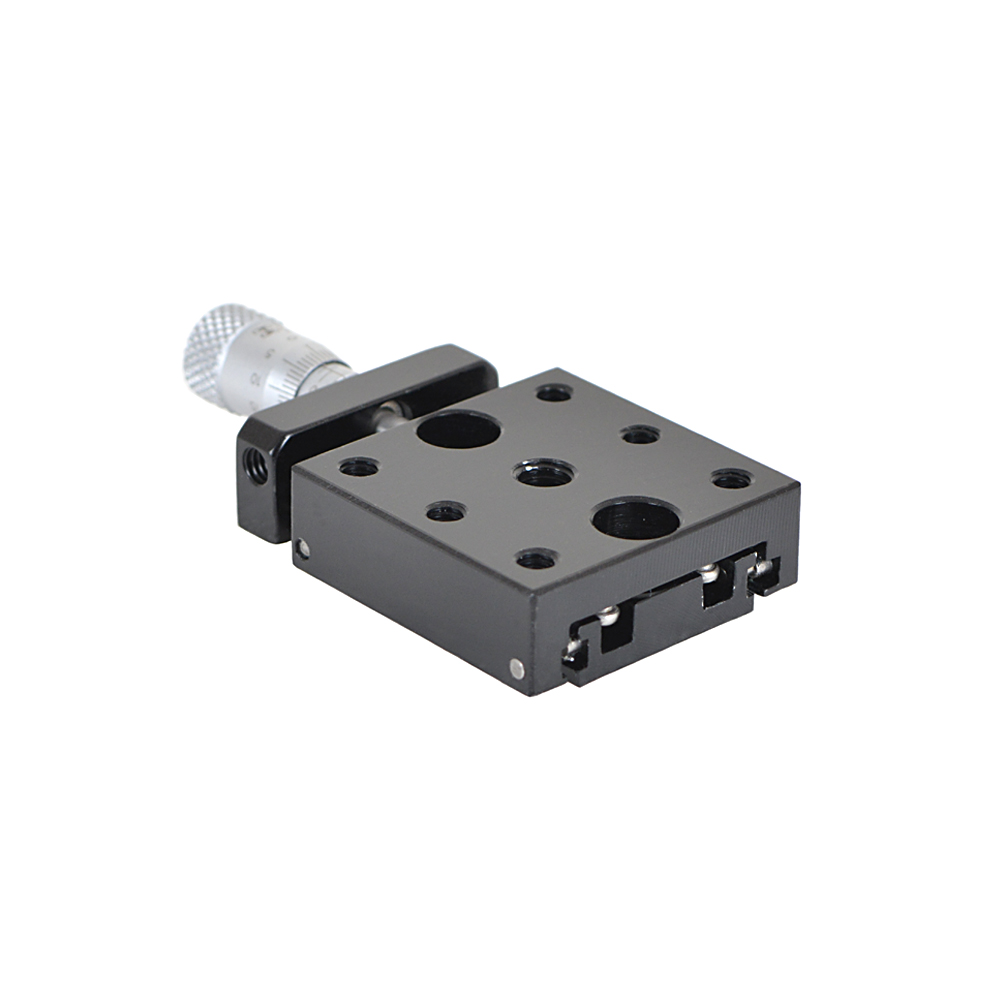

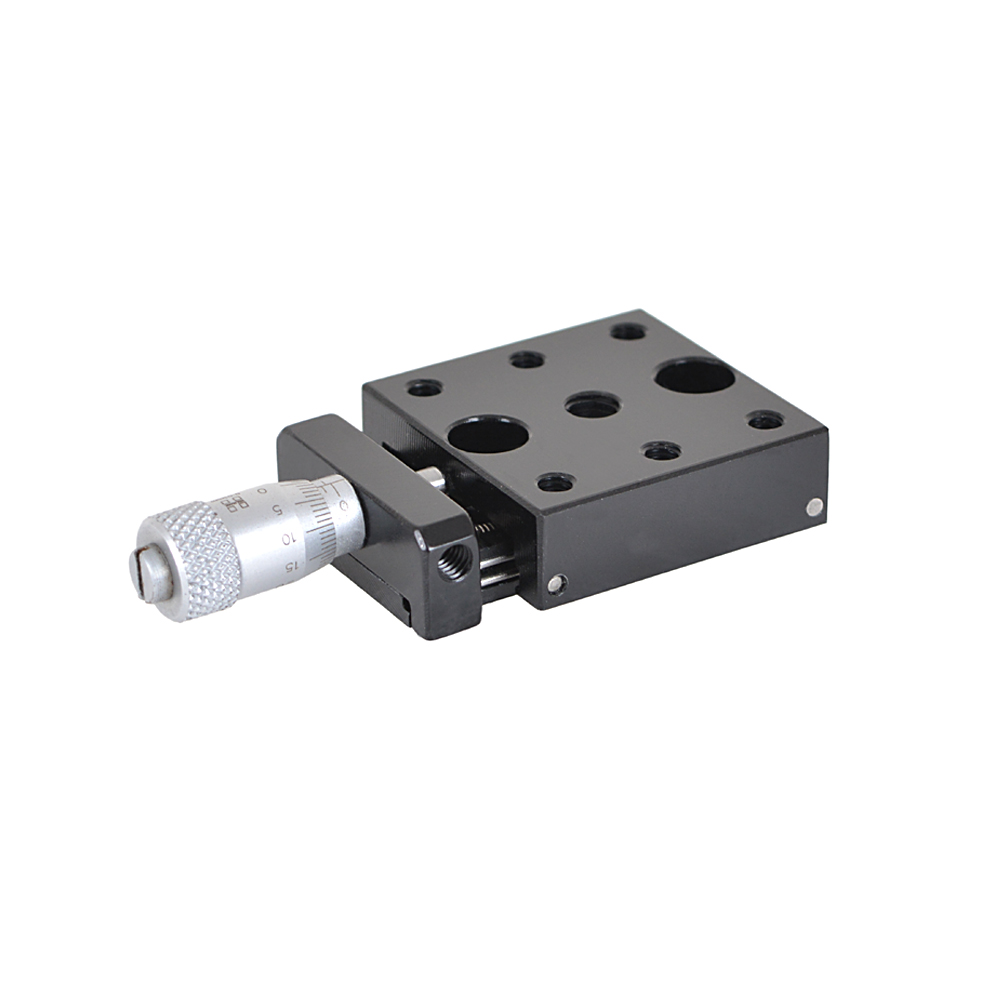

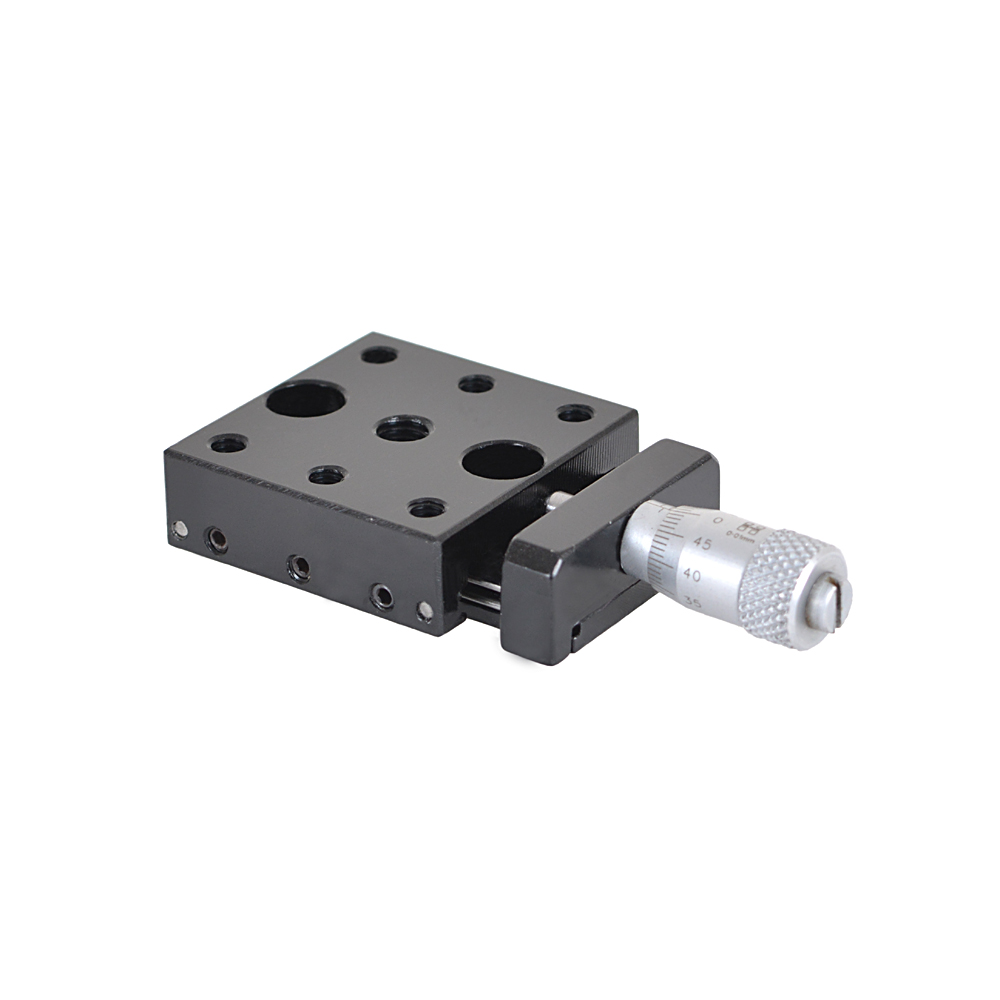

These are miniature stages for space restricted applications. Pre loaded ball bearing guide ways ensure friction free and play-less movement.
Travel : 6 mm
Carriage Size : 35 mm x 35 mm
Load Capacity : 3 kg vertical on X axis
Drive : Micrometer
► Straight Line Accuracy : 5μm
► Micrometer Linear Resolution : 10 μm
► Guide way : Precision Ball Bearing Guide Way
► Construction : Aluminum Alloy B51S
► Finish : Black Anodized
► Mounting holes : M4 Tapped Holes on Carriage
: M6 Tapped Hole on Top and Bottom
: M4 CBR Hole for Mount the Stage to Base Plate
► Mounting Options : Post Mountable by Using M6 Thread
: Breadboard mounting by using base plate
► Design : Modular design for multi axis configurations
Model : TS35-Mu10-01
