Travel : 50 mm
Carriage Size : 120 mm x 120 mm
Load Capacity : 20 kg vertical on X axis
Drive : Micrometer
► Straight line accuracy : 10 μm for total travel length
► Guide way : Precision ball guide way
► Construction : Aluminum alloy B51S
► Finish : Black anodized
► Tapped Holes on Carriage : M6 tapped holes on 25 mm grid
► Mounting Holes on the base plate : M6 tapped holes
► Breadboard Mounting : With base plate / direct
► Design : Modular design for multi axis configurations

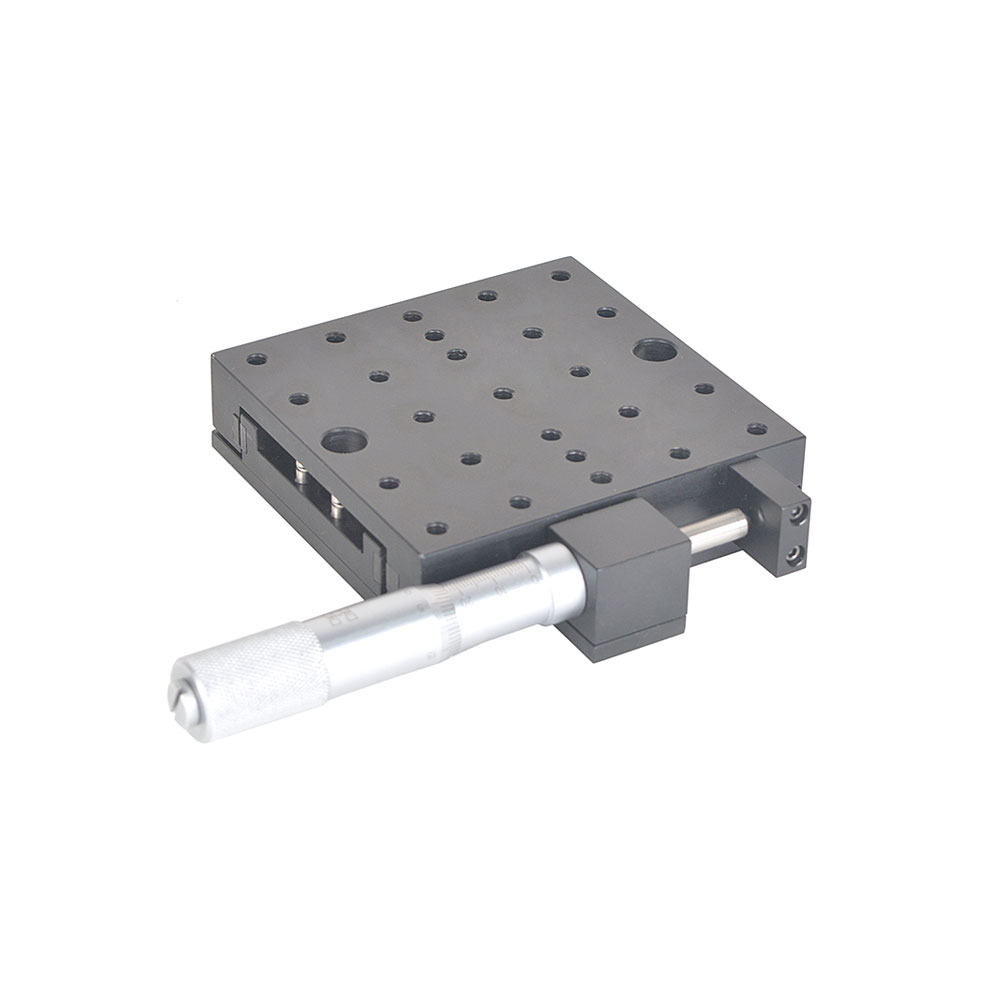

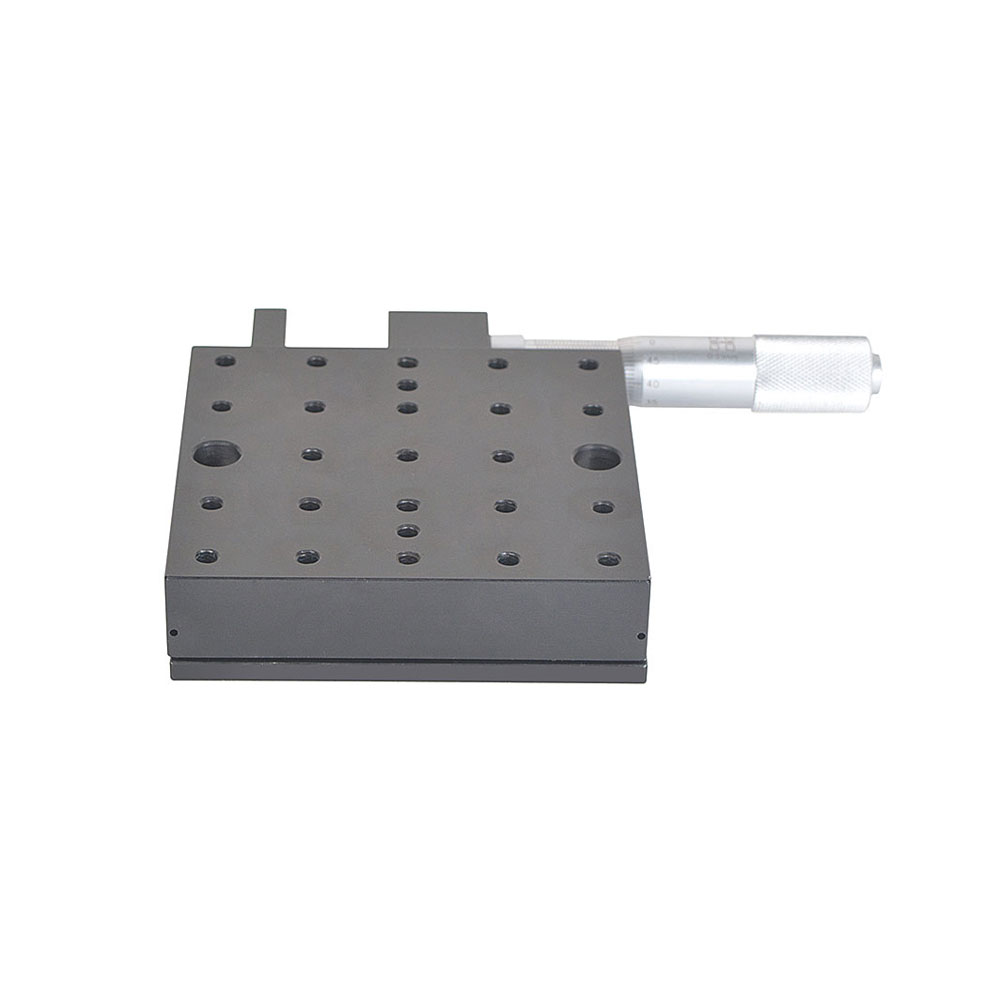

Model : TSQ120-Mu10-01
