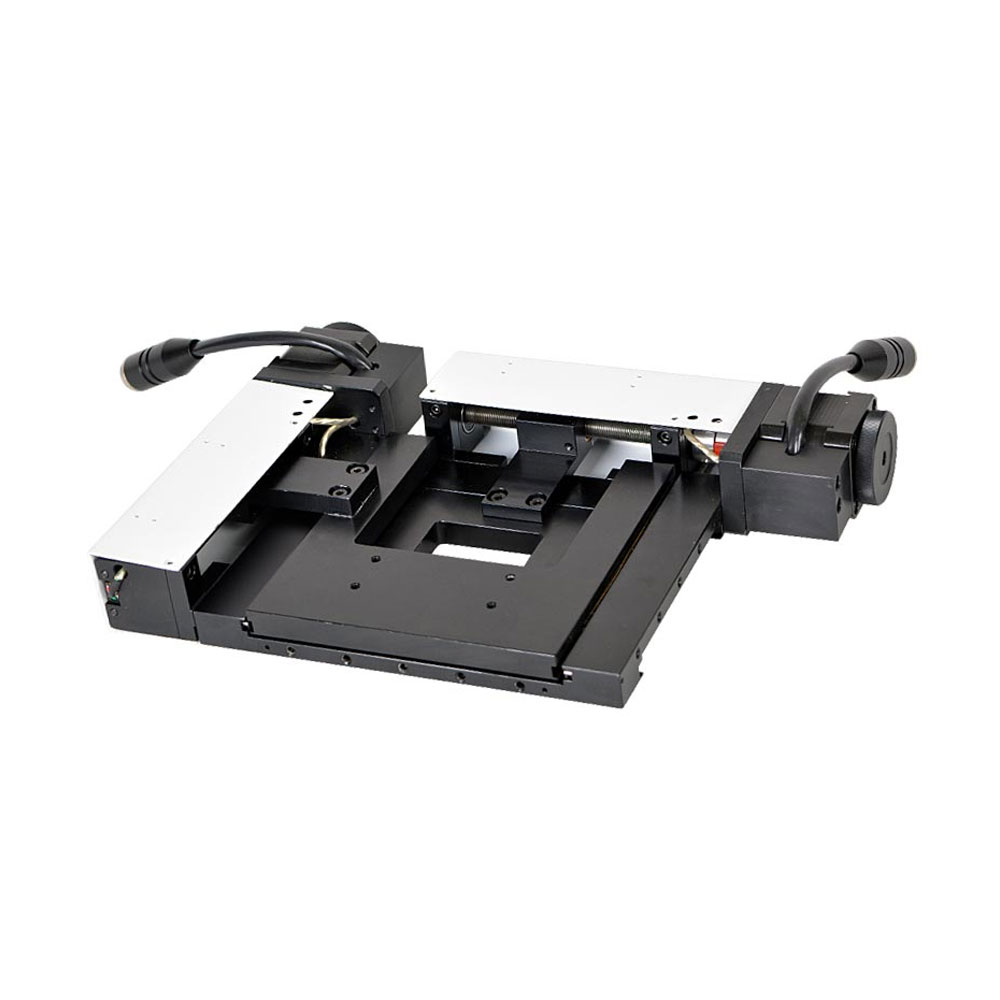

This motorized XY translation stage is an integrated motorized stage with compact structure. It’s usually used to automatically move the small object under the microscope. The aperture size is 50mm x 50mm, microscope slides can be mounted and clamped on it. Hand wheels are provided for manual positioning. This stage is connected with Holmarc’s motion controller interface and it can be controlled by our computer software via RS232 interface on controller.
► Type : Square
► X Travel : 50 mm
► Y Travel : 50 mm
► Actuator : Stepper Motor
► Resolution : 0.625 micron
► Positioning Accuracy : 5 Micron
► Controller : Holmarc M Torque
► Interface : PC Based via RS 232
► Construction : Aluminium
► Finish : Black Anodized
Model : HO-XY-MS50-SQ
